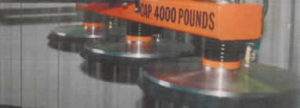

Burgess Manufacturing Company’s Vacuum Pads are machined from aluminum bar stock to exacting specifications. Each pad has an easily replaceable, slip-on neoprene sealing ring. The attractive appearance along with a conservative 2:1 safety factor on the rating makes our pads an excellent choice for your lifting needs.
For examples of Vacuum Pads designed and built by Burgess Manufacturing Company please explore the tables below:
| Single Pads | ||
| Model | Load Capacity | Dimension “A” |
| VP-7.5-150 | 150 lbs | 7.5″ |
| VP-12-500 | 500 lbs | 12″ |
| VP-16-1000 | 1,000 lbs | 16″ |
| 2 Pads on In-Line Beam | ||
| Model | Load Capacity | Dimension “A” |
| LB-2-300 | 300 lbs | Min: 16″ Max: 144″ |
| LB-2-1000 | 1000 lbs | Min: 16″Max: 144″ |
| LB-2-2000 | 2000 lbs | Min: 16″Max: 144″ |
| 4 Pads on In-Line Beam | ||
| Model | Load Capacity | Dimension “A” |
| LB-4-600 | 600 lbs | Min: 33″ Max: 144″ |
| LB-4-2000 | 2000 lbs | Min: 33″ Max: 144″ |
| LB-4-2000 | 2000 lbs | Min: 57″ Max: 144″ |
| 4 Pads Rectangular | |||
| Model | Load Capacity | Dimension | |
| “A” | “B” | ||
| LB-4R-600 | 600 lbs | Min: 16″ Max: 144″ | Min: 16″ Max: 72″ |
| LB-4R-2000 | 2000 lbs | Min: 16″ Max: 144″ | Min: 16″ Max: 72″ |
| LB-4R-4000 | 4000 lbs | Min: 19″ Max: 144″ | Min: 19″ Max: 72″ |
